EVO MAX SUPERTYPE
₹3500
Model No.：ROAD BSA30-C

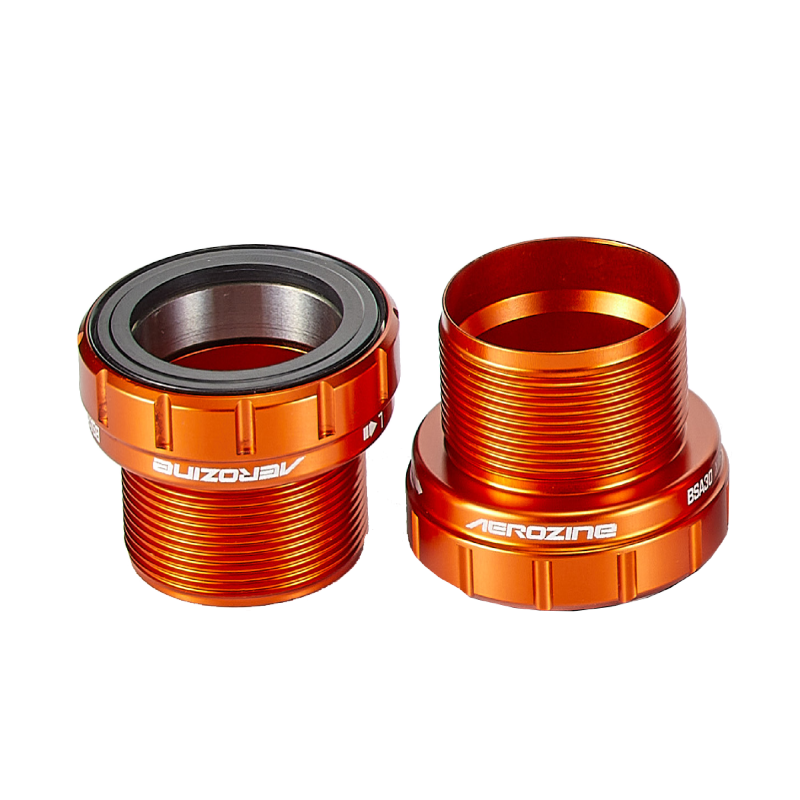

Y2023 NEW BSA30 Bottom Brackets // for BSA frames.
Exclusive designed : Easily to install without worrying slippery and damage the surface while mounting the BB on the frame.
BSA frames’ inch thread refer to a 68mm wide, 34mm inner diameter housing with reverse threads on the side of the driver.This kit allows you to install a 30mm through-shaft crank in BSA frames.
It is available in BSA frames using 30mm Spindle crankset.
FEATURES
- Exclusive designed : Easily to install without worrying slippery and damage the surface while mounting the BB on the frame.
- The BSA30 Bottom Bracket is the solution for using a 30 mm crank spindle with your English threaded frame.
TECHNOLOGIES
PRODUCT SPECIFICATION
Model No.：ROAD BSA30-C
| Model No. | ROAD BSA30-C |
| Series | ROAD racing |
| Material | Aluminum / Hyper accurate Fully CNC-machined |
| BB System | BSA(BC1.37″ thread) |
| BB Shell Width | 68 mm |
| Weight | 90g |
| Color | #18 Red | #19 Orange | #20 Gold | #21 Green | # 22 Cobalt Green | #23 Blue | #24 Cobalt Blue | #25 Purple | #26 Black | #27 Silver |
| Package included | BB cups L&R bearing cups with #6806 Ceramic bearings |
| Compatible | Shimano, SRAM |
| warranty | 2 |
warranty
AEROZINE’s Warranty Exclusions:
The warranty does not cover damages or issues arising from:
- Shipping damage
- Misuse, impact, or improper installation (The product purchased does not match the specifications of the matching parts)
- Abnormal riding conditions
- Chemical exposure during handling, reassembly, or cleaning
- Premature wear, neglect, or failure of bearings, bushings, seals, or O-rings due to insufficient maintenance
